Monitors for Fire brigades

FireDos extinguishing monitors are suitable for firefighting with water or foam and can deliver thousands of litres of water per minute over a distance of more than 150 metres. Thanks to the innovative, flow-optimised Oval-Flat design, there is only minimal pressure loss. This enables the monitors to achieve maximum throwing distance.

For flow rates from 150 l/min to 60 000 l/min
Manually or electrically controlled
Adjustment of the extinguishing agent flow rate during operation

Media & Information

Configurator
Data sheets

Your advantages

A SAFE INVESTMENT
Robust, reliable, sturdy,
built-to-last

EASY OPERATION AND INTEGRATION
Electrically or manually
operated

FLEXIBLE IN USE
Wide swivel range, adjustable
extinguishing agent volume

Request a quote

You are interested in our fire monitors? We will be happy to help you along. Request a non-binding quotation from us!

Start inquiry

sTAY INFORMED

The FireDos newsletter always keeps you well-informed. Stay up-to-date on all aspects of fire extinguishing technology.

Subscribe now

Configure your monitor

manually operated monitors

Type series	Extinguishing water flow rate*	Max. operating pressure	Constant flow rate (MPN nozzle)	Adjustable flow rate (AMPN nozzle)	Adjustable flow rate with powder feed (AMPN NDCX nozzle)	Foam pipe with deflector (FPD)	Foam pipe with deflector (AFPD)
M2	300 – 2500 l/min	16 bar	✓	✓	x	✓	✓
M3	500 – 4500 l/min**		✓	✓	✓ (7 kg/s)	✓	✓
M4	1000 – 8000 l/min***		✓	✓	✓ (15 kg/s)	✓	✓
M5	2000 – 12000 l/min		✓	✓	x	✓	✓
M7	2100 – 24000 l/min 3500 – 24000 l/min		✓	✓	x	✓	✓
M9	2100 – 24000 l/min 3500 – 24000 l/min		x	✓	x	x	x
M12	10000 – 60000 l/min		x	✓	x	x	x

* Water flow rate depends on the inlet pressure and nozzle type. Please refer to the relevant data sheet for precise figures.

* * Up to 4000 l/min when using powder as the extinguishing agent

* * * Max. 6000 l/min when using a powder pipe

Electrically controlled monitors

Type series	Extinguishing water flow rate*	Max. operating pressure	Constant flow rate (MPN nozzle)	Adjustable flow rate (AMPN nozzle)	Adjustable flow rate with powder feed (AMPN NDCX nozzle)	Foam pipe with deflector (FPD)	Foam pipe with deflector (AFPD)
M1	150 – 1000 l/min 400 – 2000 l/min	16 bar	✓	✓	x	x	x
M2	300 – 2500 l/min		✓	✓	x	✓	✓
M3	500 – 4500 l/min**		✓	✓	✓ (7 kg/s)	✓	✓
M4	1000 – 8000 l/min***		✓	✓	✓ (15 kg/s)	✓	✓
M5	2000 – 12000 l/min		✓	✓	x	✓	✓
M7	2100 – 24000 l/min 3500 – 24000 l/min		✓	✓	x	✓	✓
M9	4500 – 40000 l/min		x	✓	x	x	x

* Water flow rate depends on the inlet pressure and nozzle type. Please refer to the relevant data sheet for exact figures.

* * Up to 4000 l/min when using powder as the extinguishing agent

* * * Max. 6000 l/min when using a powder pipe

Control systems

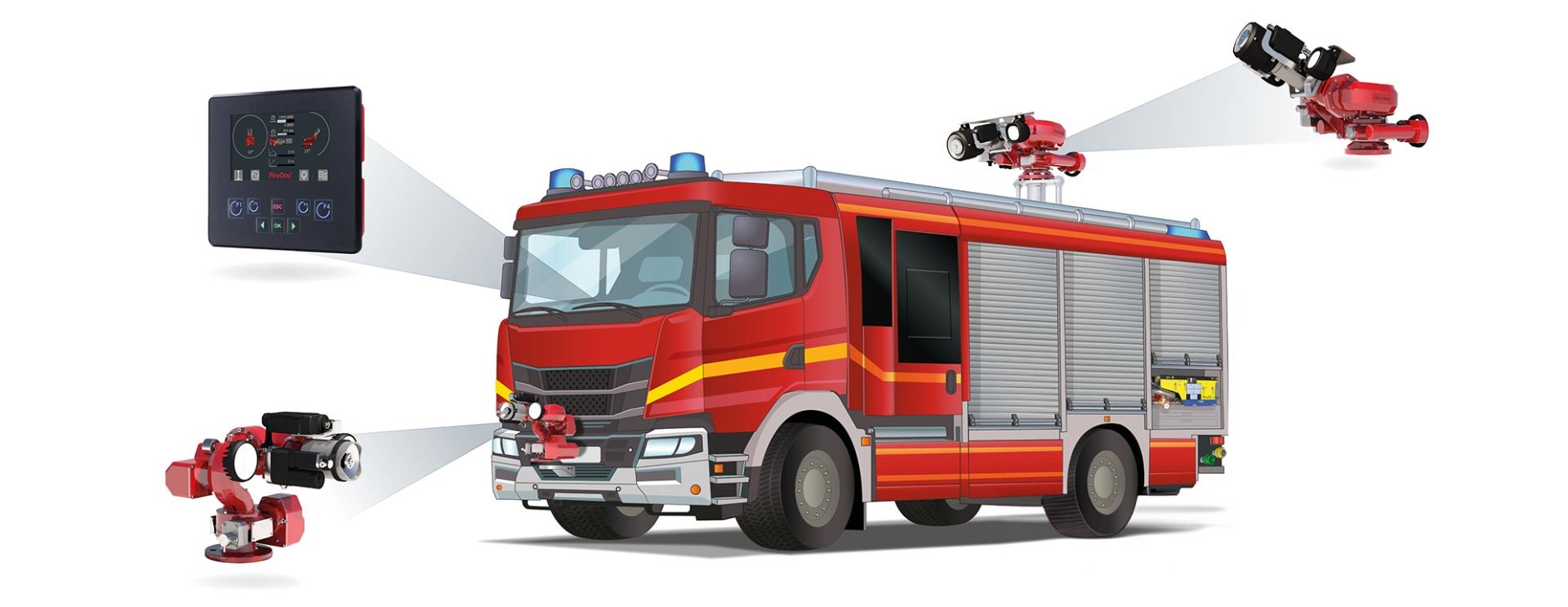

All monitors in sizes M1 - M9 can also be operated remotely and are compatible with the FireDos vehicle control system. The FCON control unit provides the perfect interface between the FireDos monitor and your vehicle’s CAN bus control system. It has been designed to give you
maximum control and an overview during operations.

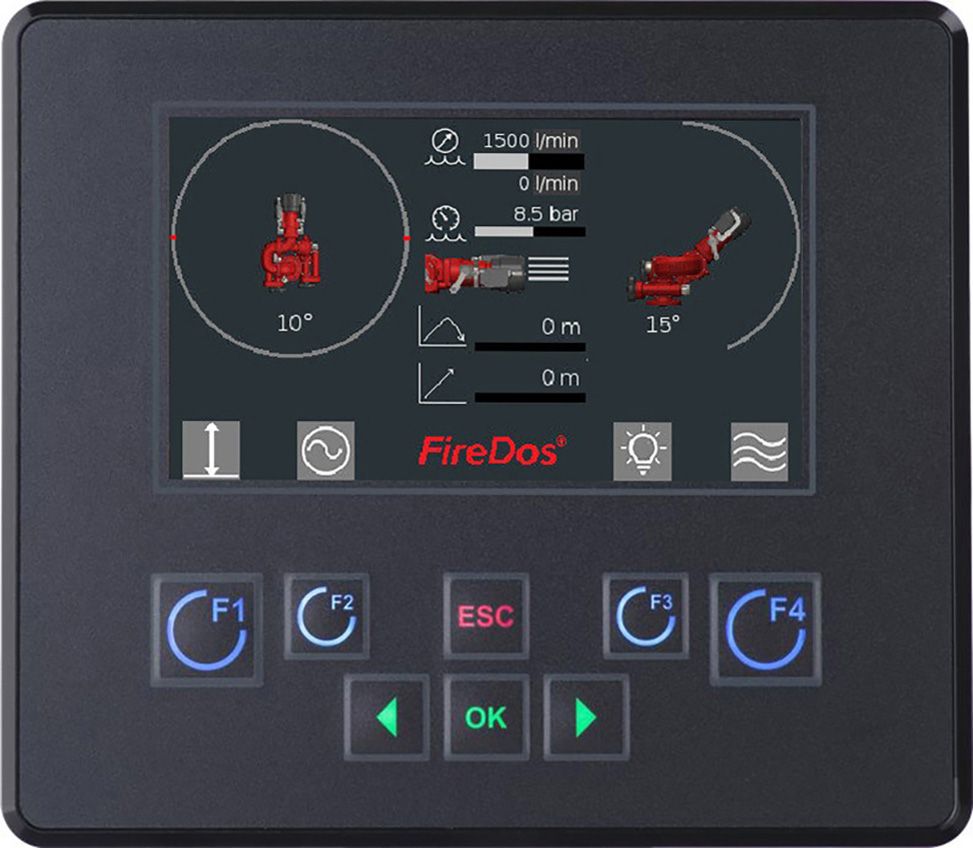

Intuitive control: The brilliant 4.3-inch colour display with its clear user interface allows for easy control of all monitor functions and displays key operating parameters at a glance. Precise positioning: Using the ergonomic joystick, you can move the monitor with pinpoint accuracy and precision to the desired position. Maximum flexibility: Optionally, the monitor can also be controlled via our tried-and-tested radio remote control – for greater freedom of movement and safety during operations.

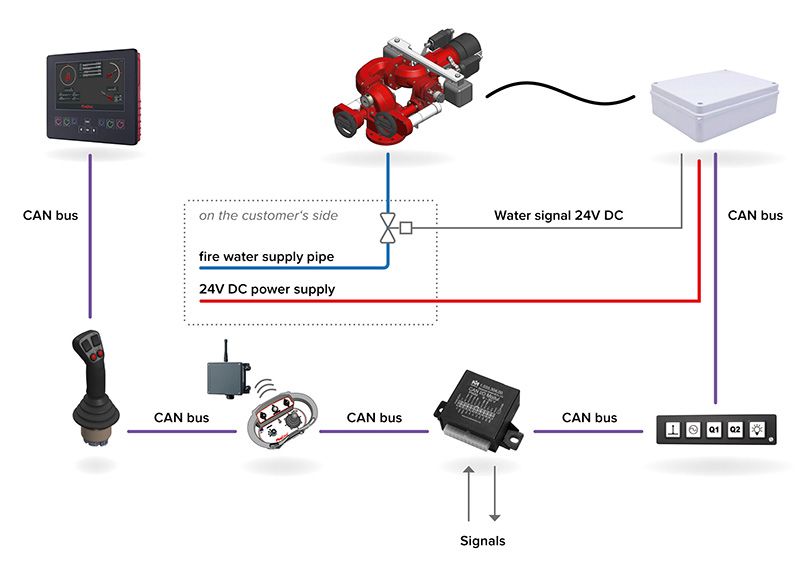

Circuit diagram FireDos monitor control system

Optional equipment

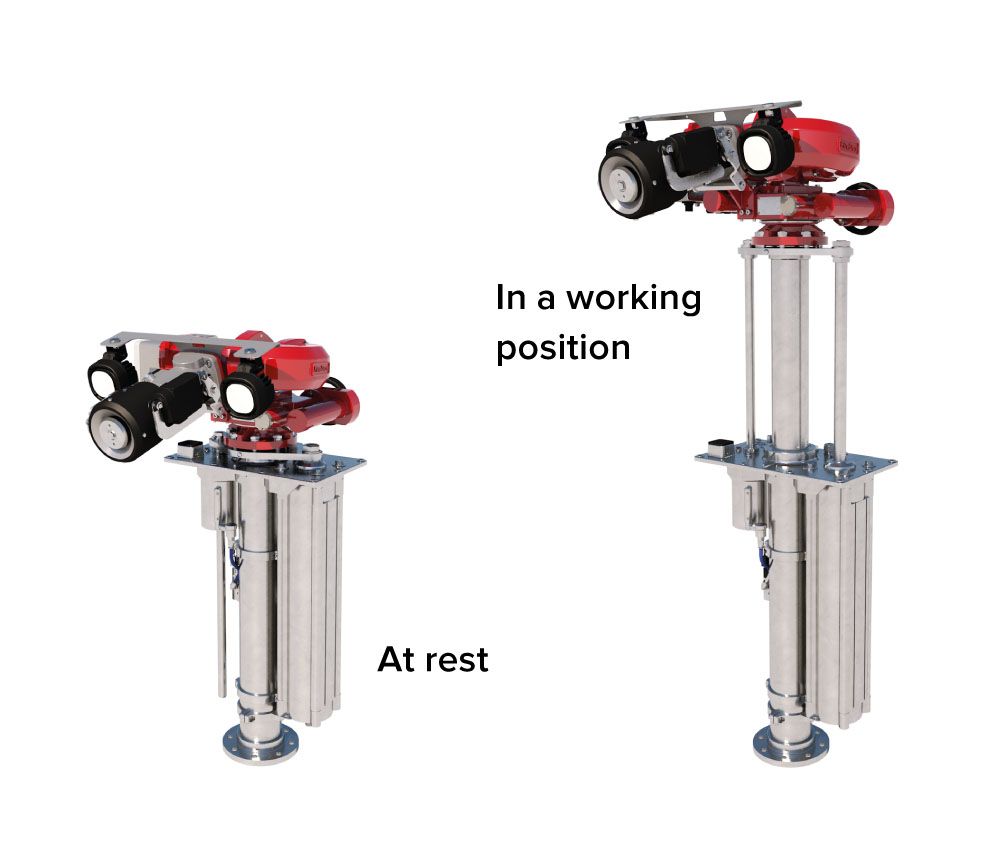

Monitor lift

The FireDos monitor lift has been developed to raise monitors of sizes M2–M5 to an elevated working position. It moves the monitor quickly and safely between the compact standby position
and the operational working height to ensure its full range of action. A pneumatic cylinder provides a vertical stroke of 500 mm and utilises the vehicle’s on-board compressed air
supply. The monitor lift can be seamlessly integrated into the FireDos control system.

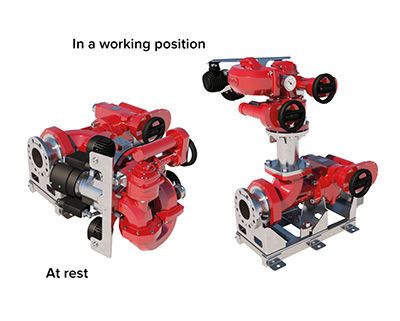

Swivel unit

Specially developed for FireDos M2 and M3 monitors, the swivel unit ensures rapid, remote-controlled operation. A powerful 24 V DC drive moves the monitor from its compact standby position into the working position and back. Uncompromising reliability under all conditions
is ensured by the integrated emergency control via handwheels.

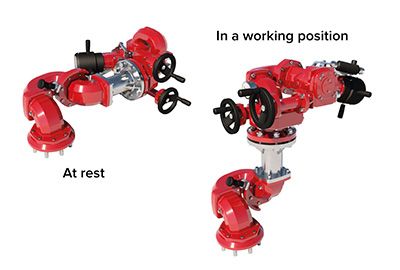

Folding joint

The folding joint is the perfect solution for integrating manually operated M2 monitors onto vehicles in a space-saving manner and achieving an optimal operating height during use. In the working position, it raises the monitor by approx. 500 mm, which makes operation easier. A secure locking mechanism in both end positions guarantees maximum safety and stability at all times – both whilst driving and during demanding operations.

Removable foam pipe (RFP)

The removable foam pipe (RFP) is available as an option alongside the multi-purpose nozzle (with or without an adjustable agent flow). The removable foam pipe features sturdy handles and can be temporarily fitted and locked in place for foam applications. Due to its shorter overall length, slightly lower foam expansion ratios are achieved than with the permanently installed FP foam pipe.
