Firefighting monitors for water or extinguishing foam

Safe investment

Robust, reliable, sturdy, built-to-last

Easy operation and integration

Electrically operated and compatible with thermal imaging systems

Versatile

Wide swiveling ranges, adjustable extinguishing agent flow rate

Regardless of using water or foam, manual or electrical controls, FireDos offers the perfect nozzle for your firefighting monitor application.

MPN / AMPN Multi-purpose nozzles

• Discharge water or low-expansion foam premix
• Adjustable extinguishing agent flow rate
• Stepless adjustment between hollow jet and spray jet
• Circle-shaped spray jet, optional nozzle design for shaping a flat and wide spray jet

MPN / AMPN Multi-purpose nozzles

• Flat jet with a modified spraying angle (special version)
• Available in sizes M1, M2, M3, and M4

RFP Foam pipe

• Add-on to the multi-purpose nozzles
• Temporary discharge of low-expansion foam
• Discharge pure water

FPD / AFPD Foam pipe with deflector

• Discharge low-expansion foam
• Wide jet produces a foam blanket
• With the deflector in place, a wide jet can be produced for large-surface foam application
• Discharge pure water

FireDos monitors are used wherever extinguishing agents for fire class A and B are applied, outdoors and indoors. Typical fields of application include tank farms, waste incineration plants, jetties and aircraft hangars.

For remote-controlled operation in stationary extinguishing systems, our monitors can be equipped with functional controls. Integration into existing thermal imaging systems is possible. Users benefit from minimum reaction times and maximum reliability.

• For all types of electric drives
  Whether direct current, alternating current or three-phase current, regardless of voltage or frequency – we offer control systems for all types of electric drives.


• Numerous control functions
  Remote control of all monitor functions is possible – from moving to the park and working positions, through the oscillation function, to the automatic self-test.


• Remote service
  Via the integrated gateway, the FireDos service can access the control system remotely, if required, and following consultation with the customer, to provide support during commissioning and maintenance work.

• Portable and stationary control units
  Control is carried out via mobile or permanently mounted control panels. Portable radio remote controls and/or wired control panels are available for operation.

• Customised Integration of external systems
  Our extinguishing monitors process signals from early fire detection and flame detection systems from various manufacturers. They also support signal exchange with higher-level control systems and fire alarm control panels.

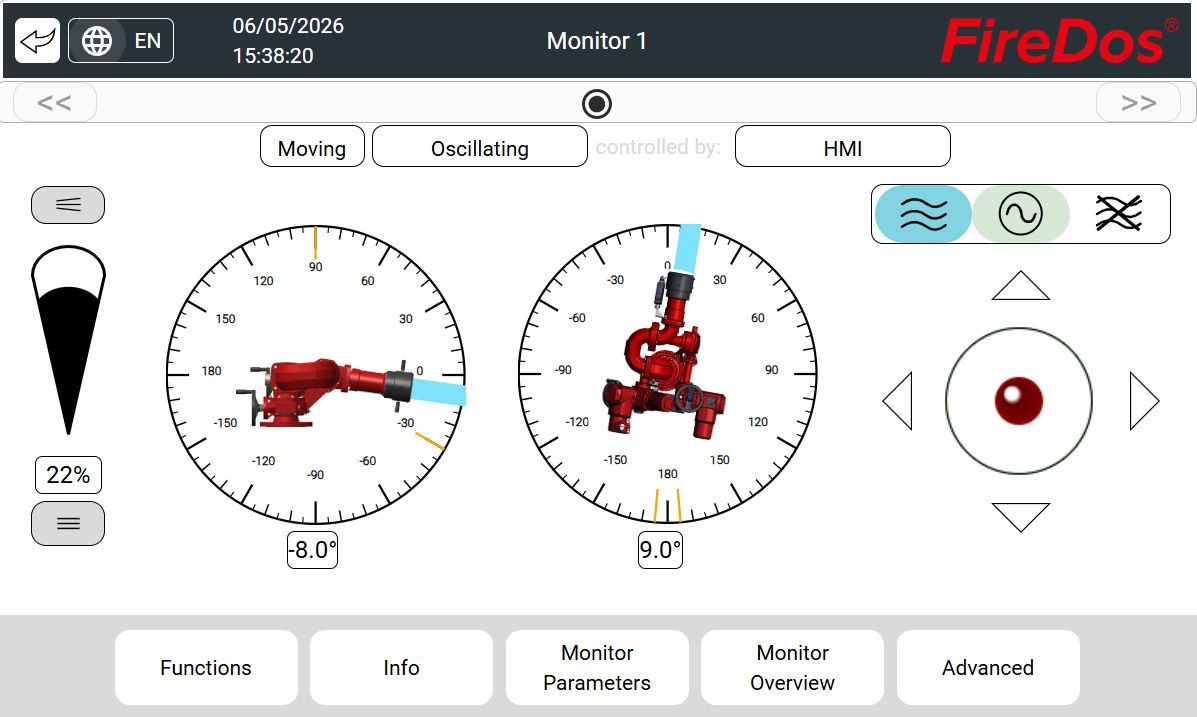

• Intuitive control, absolute precision: The SCON operating interface
  At the heart of our SCON control system is the intuitive user interface for the quick and precise Operation of the FireDos monitors during maintenance and commissioning.

• Full system control
  Switch seamlessly between the individual monitors in your system and access detailed settings, Parameters or system information as required. The clearly structured menu navigation makes configuration and maintenance easier than ever before.

Precision firefighting taken to a whole new level: with FireDos’ SCON stationary monitor control system, you have your fire protection system under control at all times, wherever you are. Our modular concept offers you a tailor-made solution that adapts perfectly to the requirements of your premises – from a single unit to an extensive network.

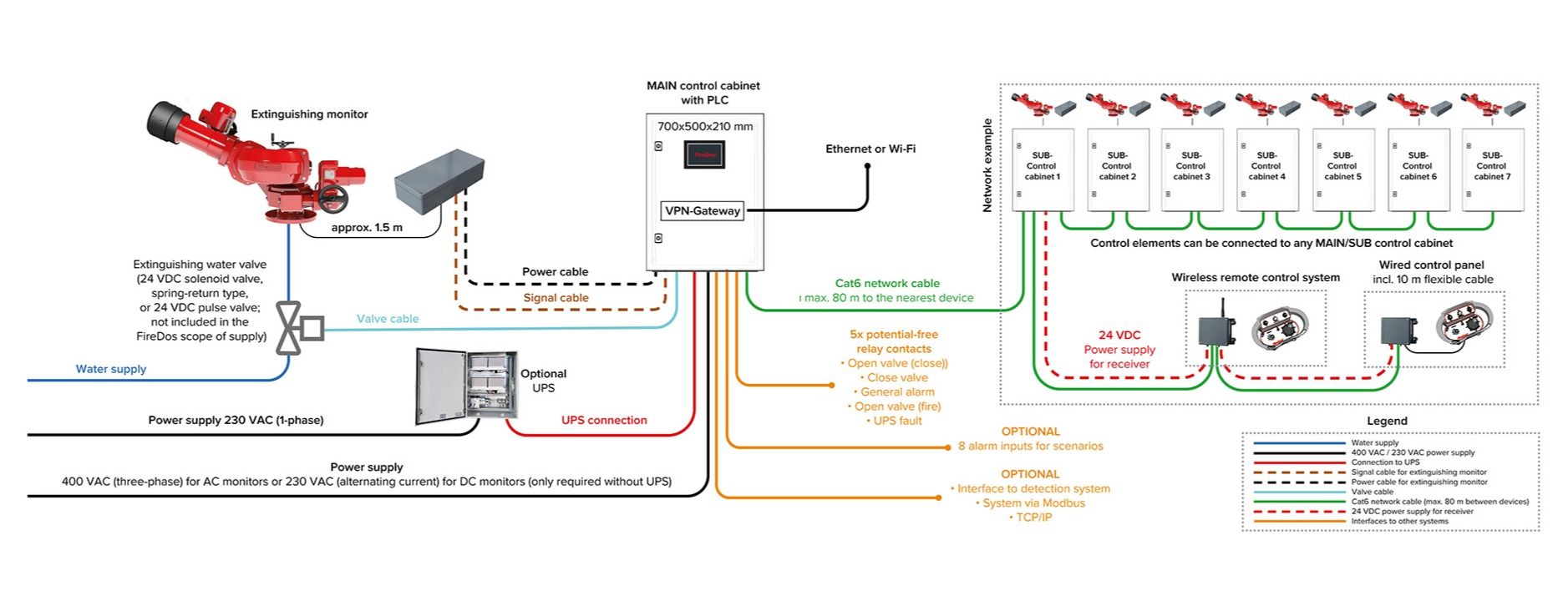

Modular and scalable for any system size

At the heart of the system is the SCON-MAIN control cabinet with integrated PLC. From here, you control the entire network. Easily expand your system with up to seven SCON-SUB control cabinets, each Controlling an additional extinguishing monitor. This intelligent architecture enables cost-effective scaling and simple installation.

• Centralised management: All system components can be operated and configured via the HMI in the MAIN control cabinet.
• Grows with your requirements: Start small and expand the system at any time.
• Simple networking: Reliable connection via standard network cables.

Maximum operational flexibility

Whether directly at the control cabinet, via a wired control panel or using the long-range wireless remote control – you decide how you want to control your monitors. The highlight: every control element can be connected to any MAIN or SUB control cabinet in the network. This means the control system is always available exactly where you need it.

• Free choice: radio remote control (up to 200 m) or wired control panel
• Decentralised control: operate the entire system from any control point.
• Intuitive operation: Fast and safe response in an emergency

Seamless integration and maximum security

The SCON control system is designed to integrate perfectly into your existing security infrastructure. Numerous interfaces enable connection to fire alarm panels or higher-level control systems. Optionally available Alarm inputs allow the triggering of pre-programmed extinguishing scenarios, whilst a VPN gateway enables remote maintenance and diagnostics. An optional uninterruptible power supply (UPS) ensures maximum operational reliability even in the event of a power cut.

• Smart connectivity: Interfaces for control systems (potential-free contacts) and detection systems (Modbus TCP/IP)
• Automated scenarios: Faster response thanks to predefined extinguishing sequences
• Reliability: Optional UPS guarantees functionality when it matters most
